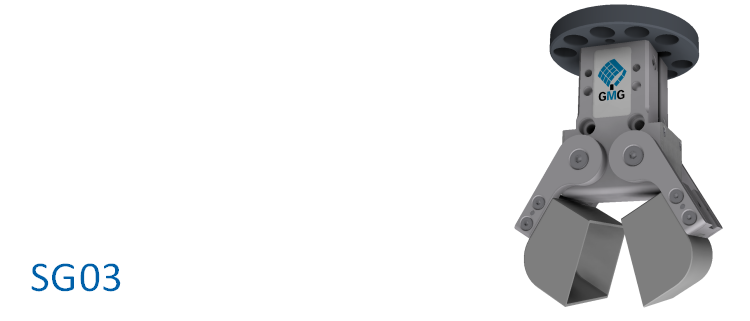

Sealed Clamshell Bucket Gripper | Design SG03
Characteristics
- ideal for gripping bulk good like granules or standard parts
- high grip force
- short cycle Time
- completely sealed mechanics
- user defined installation position
- maintenance free up to 10 million movements
- compact design
- modular design
- multiple position checks through proximity switches (optional)
- customized buckets available on request
The required air pressure p req at a parallel and closed finger position can be determined by means of the given torque M [Nm] with the following formula: 0,5 bar ≤ p req = M bar / 0,475 Nm ≤ 6 bar
